SW-G7PLUS
SW-G7PLUS

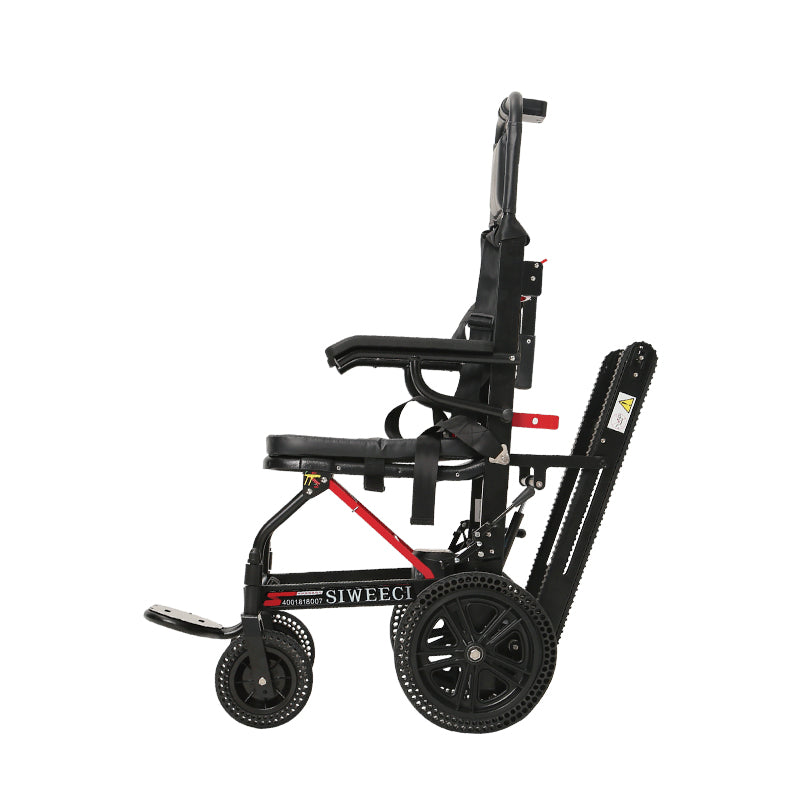

Electric Stair Climber
A high-performance electric stair climber that carries up to 100 kg and climbs roughly 70 floors on a single charge. At 38 kg with a foldable 1180 × 630 × 340 mm frame, it transports easily.
Climbing speed is adjustable (average 0.8 m/s) for different stair slopes. A 12Ah lithium battery and 24V 200W dual-drive brushless motors deliver smooth power, with 8" front and 12" honeycomb rear wheels for flat-ground stability.
Key Features
- Touchscreen panel — One-key operation, easy for elderly users.
- 3 adjustable gears — Pull-rod positions suit different needs.
- Car-grade safety belt — Crossed double protection for safety.
- Easy folding — Pull the crossbar to fold quickly.
Specifications
| Motor | 24V 200W × 2 Brushless |
|---|---|
| Battery | 24V 12Ah |
| Weight Capacity | 100 kg (220 lbs) |
| Climbing | Up to ~70 floors / charge |
| Climbing Speed | ~0.8 m/s (adjustable) |
| Net Weight | 38 kg |
| Folded Size | 1180 × 630 × 340 mm |
| MOQ | — |
| Typical Lead Time | — |
| Compliance | Built in ISO 13485 & FDA-registered facility · UN38.3 battery tested · CE-ready |
